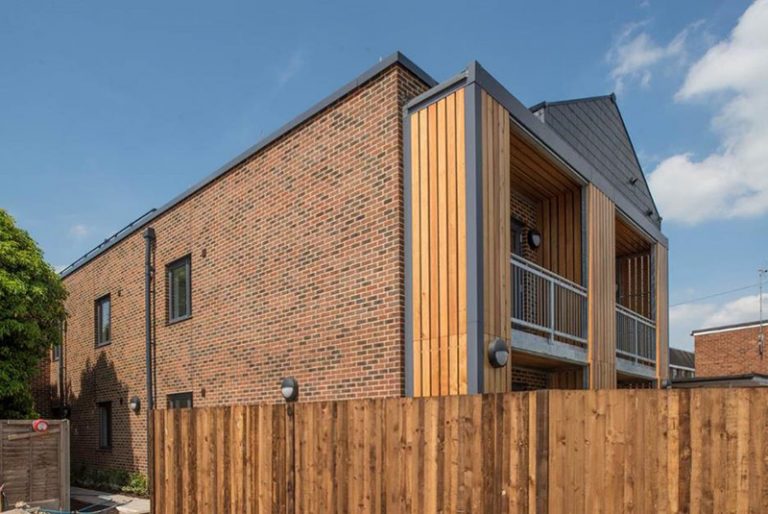

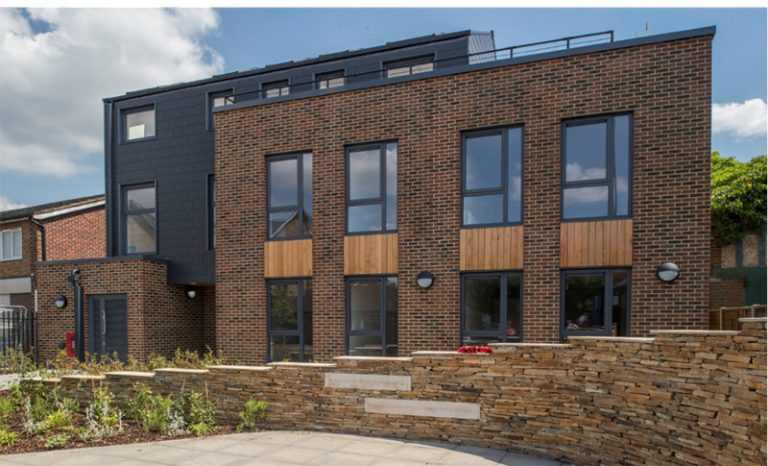

The modular units provide 809m2 of accommodation space spread over 9 apartments over 3 floors

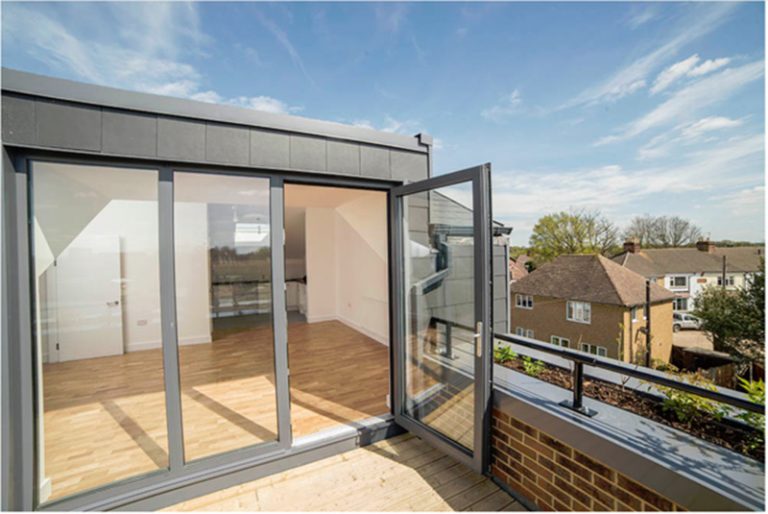

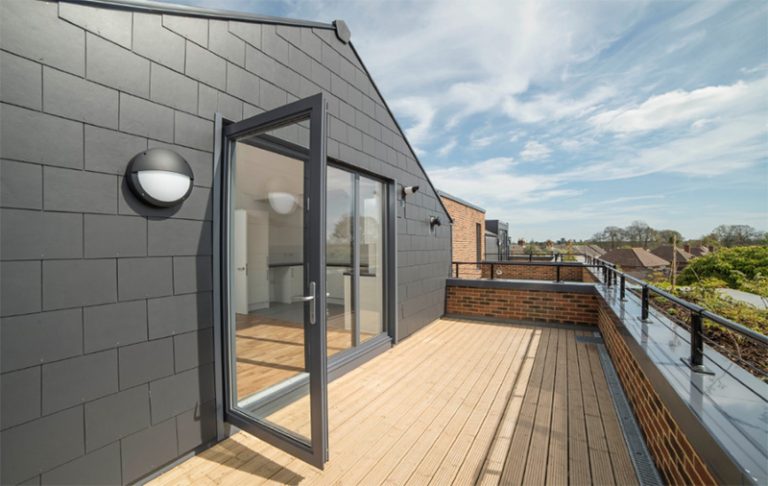

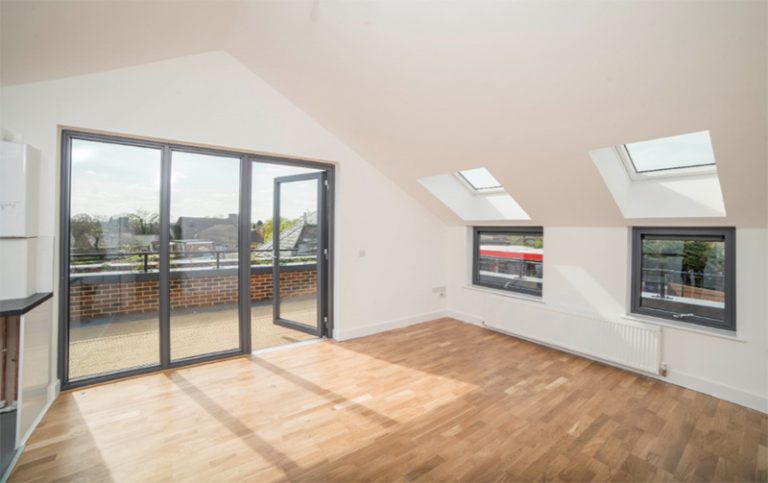

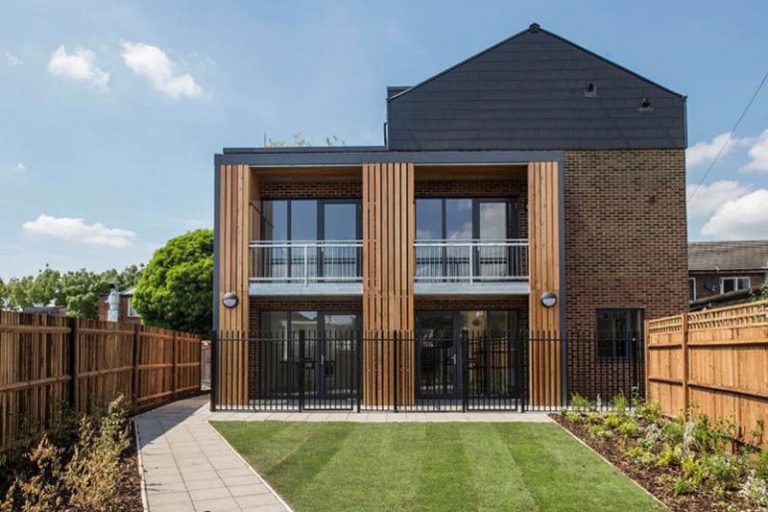

The roof terraces for the top floor apartments give 100m2 of external space and formed part of the first floor modules. Bolt on balconies were also included for additional external space
Additional green roof area of 20m2 was built into the first floor module roof
The Bin and Bike stores include factory fitted concrete floors
The modular design was completed from the original design drawings (intended for traditional construction) by our in house team of designers using both traditional 2D CAD and BIM Level 2 compliant Revit Architecture
Due to the large size of the production facility each floor was laid out complete thus maximising factory content
In the factory, the workforce can work simultaneously on all floors
High levels of factory finishing works – Quality built in 90% of Works completed in factory conditions
One of the unique features of Reds10’s premises is the size of the facility. With over 50,000 square feet of clear span space in each of our two production facilities modules can be loaded utilizing cranes. This allows very large modules (up to 18m long, 5m wide and 4.2m tall) to be loaded with minimal stress, limiting the potential for damage to modules in transit
For Surrey Apartment Complex the largest modules were 15m long and weighed in excess of 20 tonnes
As with most residential infill projects the site was very constrained and required careful planning, co-ordination and timing to ensure minimum disruption to residents and the users of local facilities
More than half of the transport loads were escorted in to the site due to their size
Installation of the modules took place using a 350 tonne crane with Super Lift and 140 tonnes of ballast
The 21 modules were installed in 4 days.
The 21 modules were installed in just four days and provide 809m2 of accommodation space, spread over nine apartments, and three floors.
